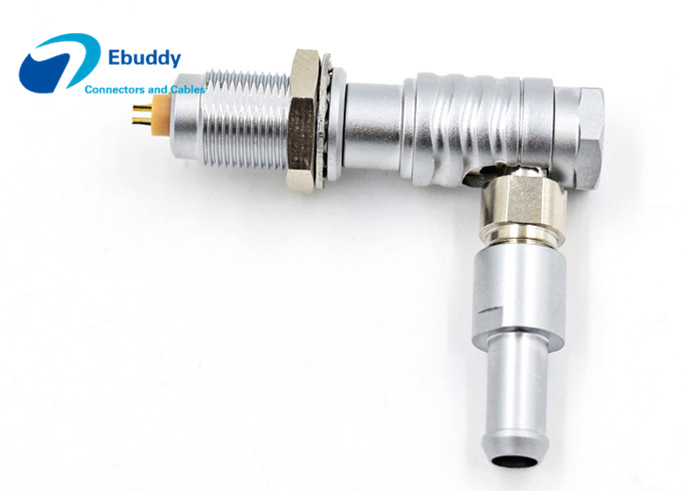

Lemo Elbow Plug 00B Size 2pin 3pin 4pin 5pin Female Connectors FHG 00 302

Brand Name : OEM

Model Number : FHG.00.304

Certification : CE,ROHS

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 90000pcs per month

Delivery Time : 3-7 working days

Packaging Details : PP bag

Model : FHG.00.302

Pin : Solder

Shell size : Lemo 00

Style : Elbow plug

Contact : Male

Max. Matings : 5000

Contact Now

Lemo Elbow plug 00B size 2pin 3pin 4pin 5pin female connectors FHG 00 302

Features:

PERFORMANCE DETAILS
Insert	00B.302 : 2 Low Voltage
Configuration	Brass (gold plated)
Insulator	P:PPS
Specifications	Low Voltage
Contact Type	Solder
Max. Matings	5000
Contact Dia	0.5 mm
Bucket Dia	0.4 mm
Max. Solid Conductor	0.09 mm^2 (AWG 28)
Max. Stranded Conductor	0.05 mm^2 (AWG 30)
R (max)	8.7 mOhm
Vtest (AC)	1100 V
Rated Current	5 A
OTHER CHARACTERISTICS
Endurance (Shell)	5000 mating cycles
Temp (min)	-20 deg C
Temp (max)	+150 deg C
Humidity (max)	<=95% [at 60 deg C / 140 F]
IP Rating	50

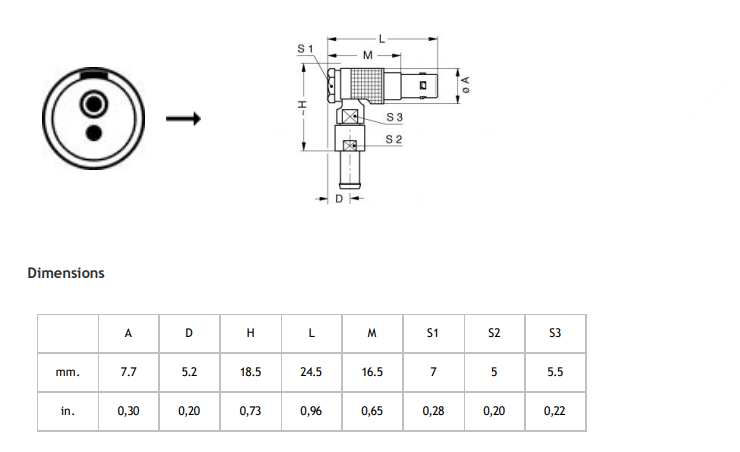

Size drawing:

Lemo Elbow Plug 00B Size 2pin 3pin 4pin 5pin Female Connectors FHG 00 302

Custom service:

Besides the compatible models, we also can supply custom service for connectors and cables:

Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
Cable assembly service: we can supply cable assembly service according to your requirements.
Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
Cable assembly solution supply: We can make cable assembly service solution to meets you need.
Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

Fast Delivery:

We have stock for most models, fast delivery time , usually 2-3 days for samples, 5-7days for mass production

Payment Method options:

T/T. Paypal, Western Union, Credit card available here, for small quantity, paypal suggested.

Collet Size:

Lemo Elbow Plug 00B Size 2pin 3pin 4pin 5pin Female Connectors FHG 00 302
